PGM MB 100 - MB 200

Equipment for bending of thermoplastics plate of different thickness. Ideal for creation of decoration, exhibition supports, roofing and urban fornitures.

COD. 123456789



BENDS A LOT OF MATERIAL IN ANY FORM

  • Single-side unit designed for heating, along a precise and clear line of thermoplastics plate, to get clean folds (from 0° to 180°) with no need of a milling to complete the job.
  • Wide radius bending, thanks to adjustment of opening radiation's light and the distance from resistance to the supports plane.
  • Ideal for bending of materials with thickness from 1 to 10 mm.
  • Liquid cooling system of profile to connect on a outside cooling unit.
  • Equipped with R-Digit: Digital temperature regulator to maintain constant the power of the heating element to vary of the power supply.
  • Supplied with a couple of lateral guides and reference block bar to be set on a worktop.
  • Can be mounted on an aluminium support bench with wheels (optional).

SUITABLE FOR:

  • Methacrylate (like Plexiglas®)
  • PVC
  • And more...

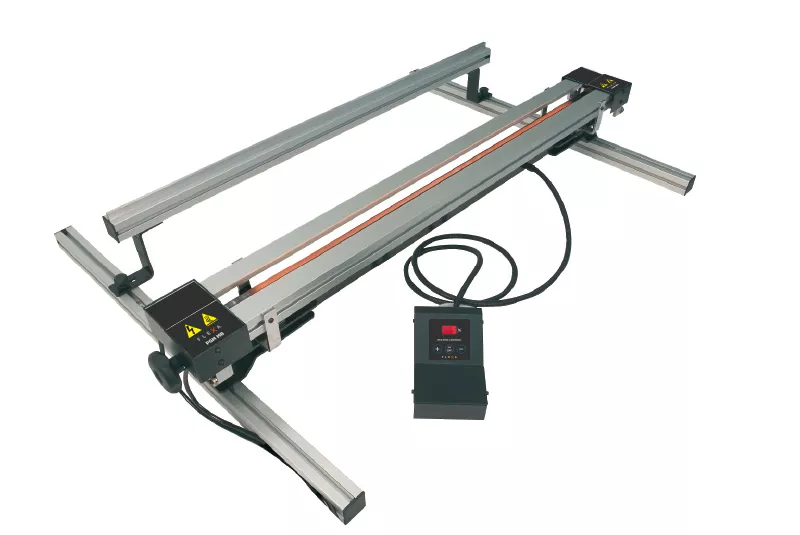

PGM MB 100 - MB 200

Single-side heating for bending of thermoplastic sheets

PGM MB 100 - MB 200 Technical Specs

SELECT T2.Id as Id, T2.Ordina, T3.Testo AS Label, T1.Testo AS Valore FROM TBLAttributiContent T0 INNER JOIN TBLContent TC ON TC.Id = T0.IdContent INNER JOIN TBLTesti T1 ON T1.idArea = 66 AND T1.IdTipoTesto = 67 AND T1.IdCampo = T0.Id AND T1.IdLingua = 015 INNER JOIN TBLAttributi T2 ON T2.Id = T0.IdAttributo INNER JOIN TBLTesti T3 ON T3.idArea = 66 AND T3.IdTipoTesto = 66 AND T3.IdCampo = T2.Id AND T3.IdLingua = 015 WHERE T2.Deleted <> 1 AND T0.IdContent IN (791,793) AND T2.ShowOnWebsite = 1 AND ISNULL(RTRIM(T1.Testo),'') <> '' ORDER BY T2.Ordina, T2.Id, TC.ordina, TC.data desc, TC.Id
PGM MB 100 PGM MB 200
Water-cooling units is necessary
FLEXA ICE provided by Flexa
Not included Not included
Working width 1050 mm (42 in.) 2100 mm (83 in.)
Material thickness from 1 to 10 mm (from 1 to 0,4 in.) from 1 to 10 mm (from 1 to 0,4 in.)
Adjustable radiate width from 0 to 60 mm (from 0 to 2,3 in.) from 0 to 60 mm (from 0 to 2,3 in.)
Heating element Quartz resistence Quartz resistence
Profile width interaxle between 2 units Adjustable Adjustable
Power Supply 230V - 50 Hz - 2800 W 230V - 50 Hz - 3500 W
Dimensions (W x L x H) 1600 x 250 x 350 mm (63 x 10 x 14 in.) 2600 x 250 x 350 mm (102 x 10 x 14 in.)
Packing dimensions (W x L x H) 1680 x 450 x 400 mm (66 x 18 x 16 in.) 2700 x 450 x 400 mm (106 x 18 x 16 in.)
Weight 40 kg (88 lbs.) 41 kg (90 lb.)
Packing weight 55 kg (121 lb.) 75 kg (165 lb.)
