MOTORIZED UNWINDER UD 170
Accurate, continuous, and interruption-free unwinding, even with imperfectly wound rolls.

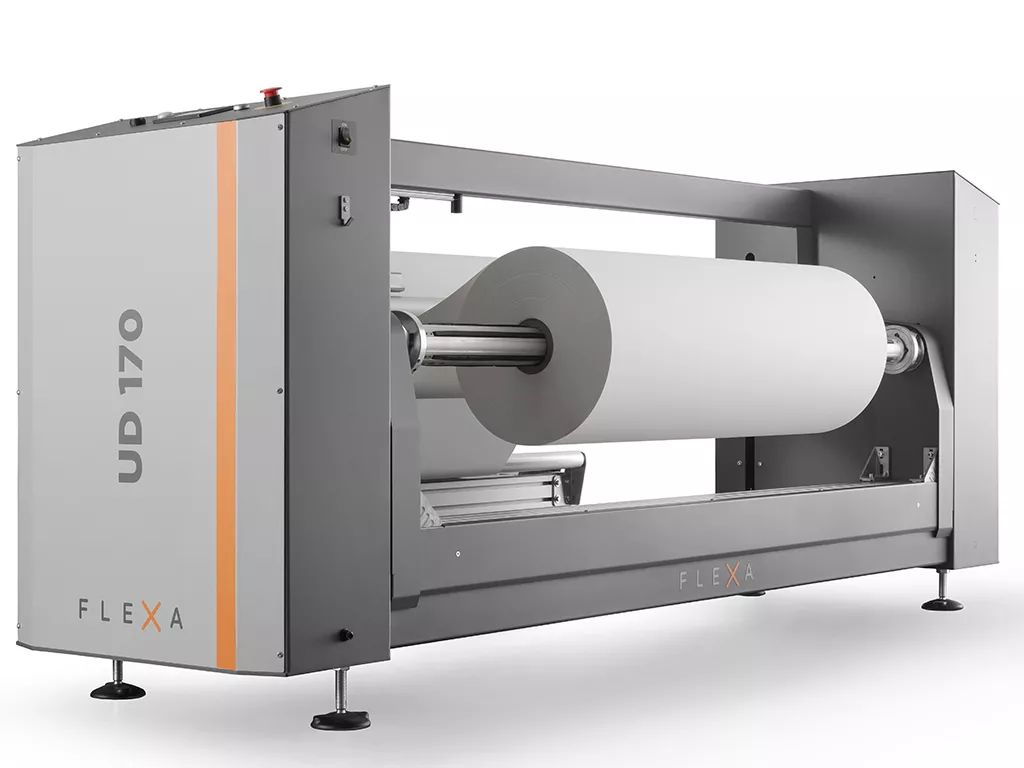

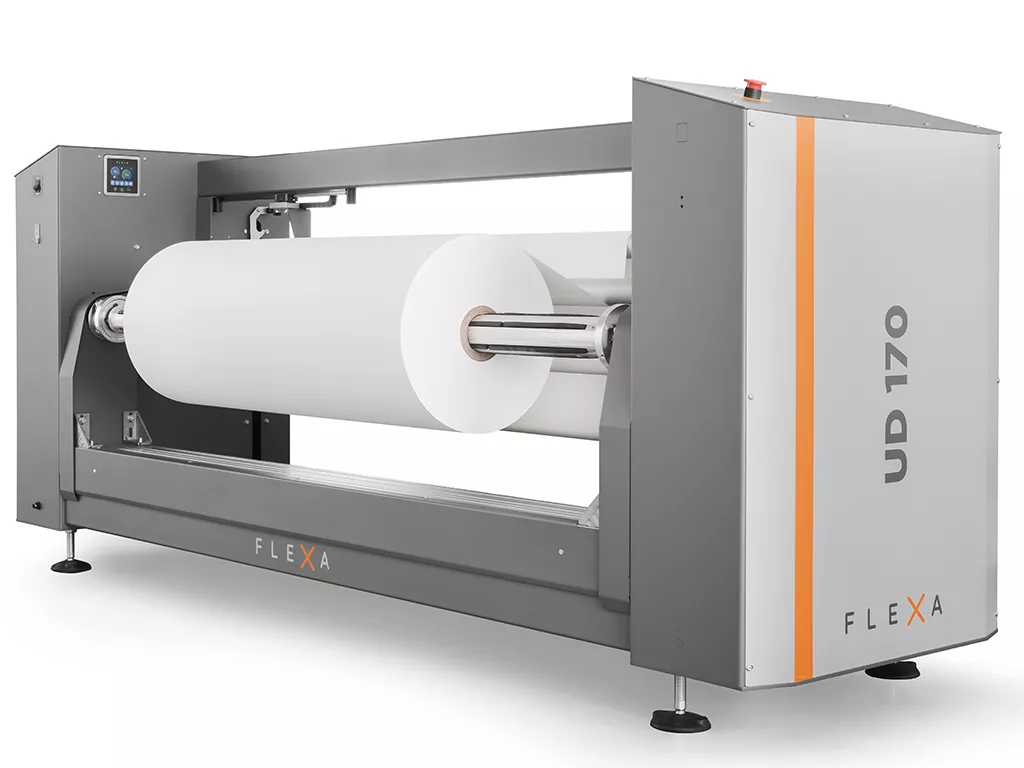

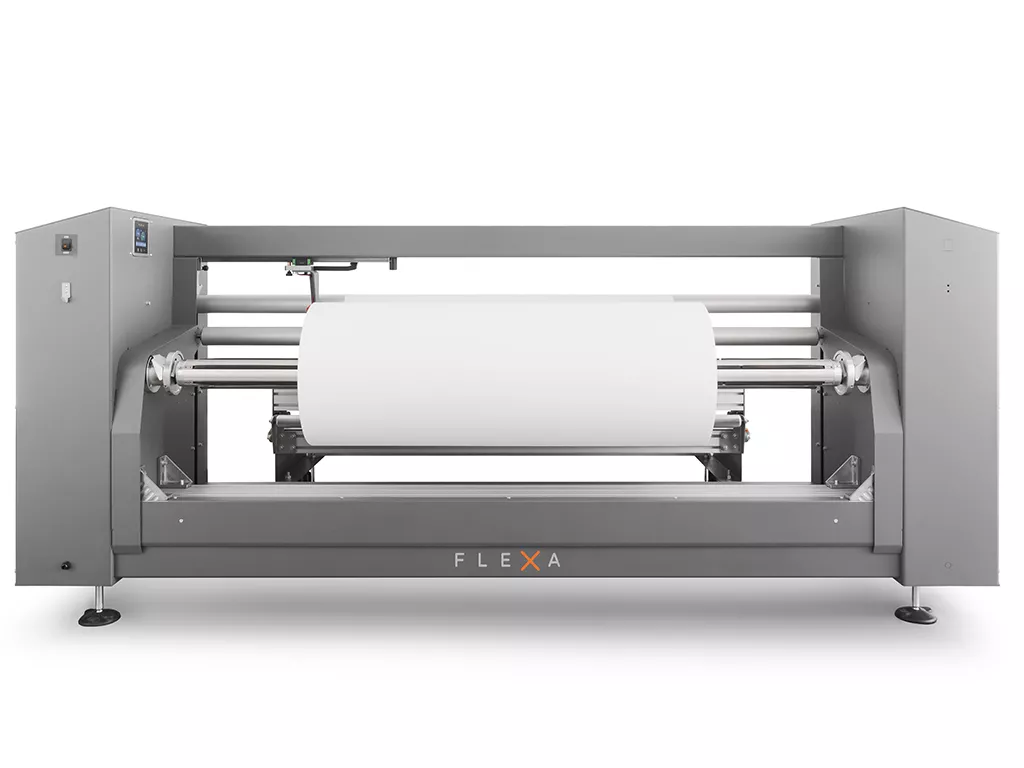

The UD 170 is a motorized unwinder designed to handle jumbo rolls up to Ø 600 mm in diameter and 400 kg in weight.
It is the only unwinder on the market equipped with an ultrasonic sensor for automatic vertical alignment, ensuring stable and centered media feeding. This improves workflow efficiency and minimizes manual intervention.
It can be used at the input stage to feed a printer or finishing equipment such as an XY automatic cutter or laminator.
The UD 170 is the ideal solution for managing long production runs with maximum precision and reliability.
It can be used in-line with your wide-format printer, adapting seamlessly to your production workflow.
A UD 170 MAXI version is also available for rolls with a maximum diameter of 1000 mm and a maximum weight of 1000 kg.
UD170 can be connected to the internet network for remote assistance, for fast and efficient diagnostics.
PRECISE ALIGNMENT,
NO WASTE
- Optimize the workflow: The UD 170 motorized unwinder is designed to feed wide-format printers or finishing equipment with precision and stability, even during long production runs. Its continuous, interruption-free workflow minimizes manual intervention and boosts operational efficiency
- Precise unwinding: Equipped with an ultrasonic sensor for automatic vertical alignment, the UD 170 ensures perfectly centered media feeding, even with rolls that are not perfectly wound. This minimizes waste and avoids workflow interruptions
- Choose the setup that best fits your workflow: the UD 170 can be used as an in-line unwinder for printers or for devices like XY cutters or laminators
- User-friendly interface: The intuitive touch screen control panel allows for easy and fast setup of all operating parameters
- Made in Italy: Designed and manufactured completely in Italy
SUITABLE
MATERIALS
- Wallpaper
- Paper and blueback paper
- Vinyl & self-ahdesive vinyl / Backlit & frontlit
- PVC banner
- TNT
- Flexible materials wound in roll
UD 170
-
Ultrasonic sensor for the automatic vertical alignment (optional)
It automatically aligns the incoming roll vertically, providing stable and centered feeding
-
Diameter reading sensor
Diameter reading sensor of the roll for both unwinder and rewinder
-
Heavy-duty pneumatic expanding shaft
Heavy-duty pneumatic expanding shaft, 3” diameter. Other diameters available on request
-
Vertical dancer of the UD 170 unwinder
Vertical dancer for media handling on unwinder
-
Display for the automatic vertical alignment
-

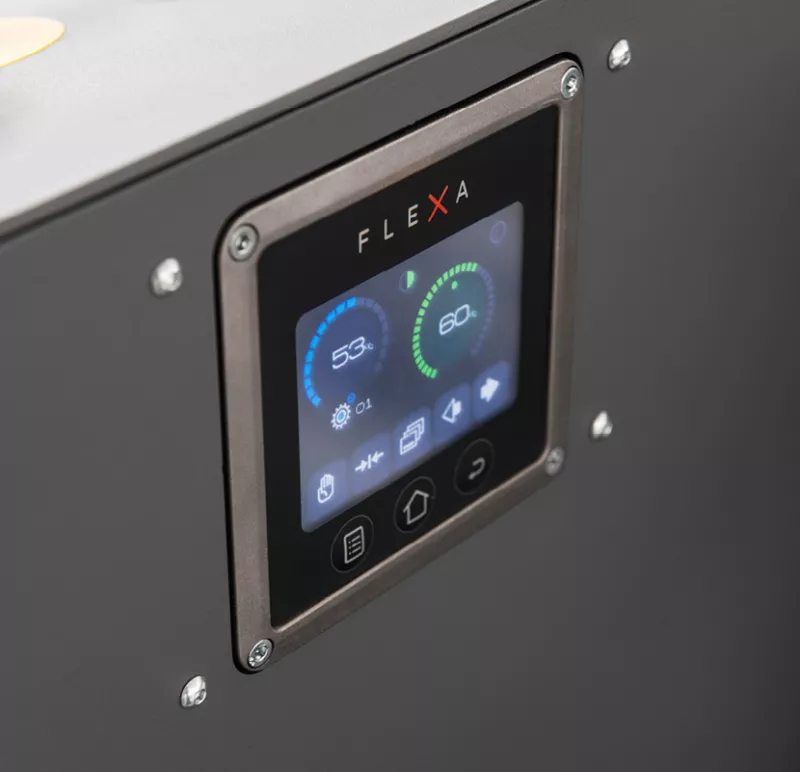

Control panel
Quick and easy working parameter setup
UD 170 Technical Specs
| UD 170 PLUS | UD 170 | |
|---|---|---|
| Working width | 1650 mm (65 in) | 1650 mm (65 in) |
| Max. roll weight | 400 kg (882 lbs) | 400 kg (882 lbs) |
| Maximum external roll diameter | 600 mm (16 in) | 600 mm (16 in) |
| Ultrasonic sensor for automatic vertical alignment | Onboard | - |
| Power Supply | 230 V - 50/60 Hz - 650 W | 230 V - 50/60 Hz - 650 W |
| Dimensions (W x L x H) | 2685 x 720 x 1120 mm (106 x 28 x 44 in) | 2685 x 720 x 1120 mm (106 x 28 x 44 in) |
| Weight | 355 kg (782 lbs) | 355 kg (782 lbs) |
