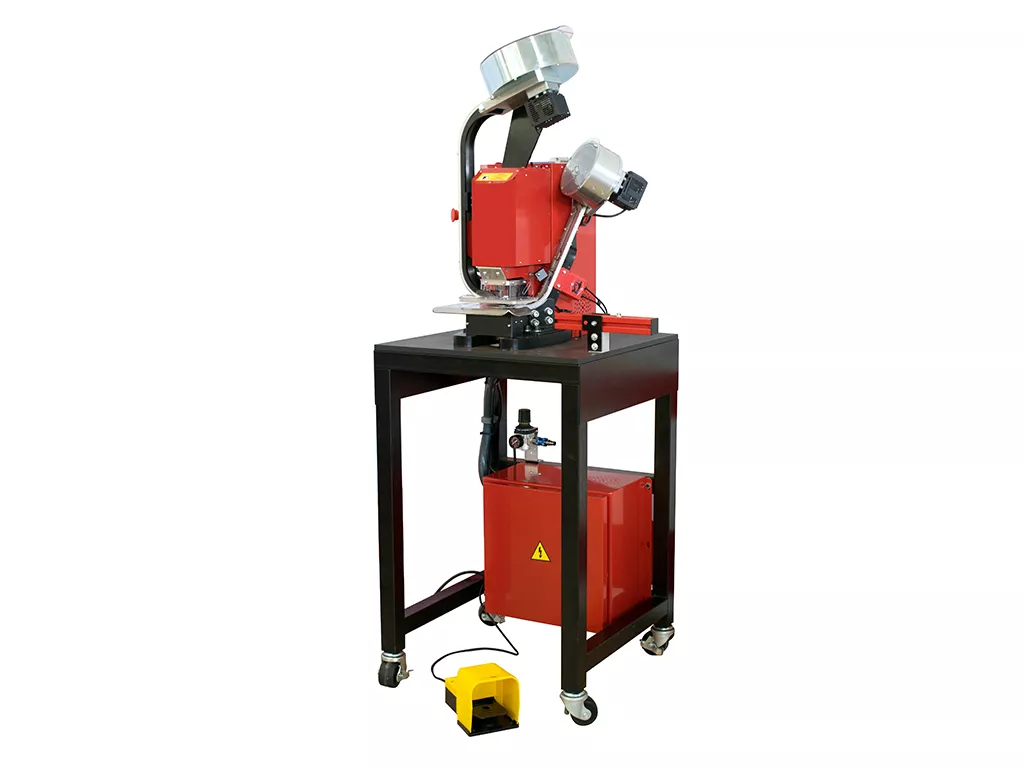

GHOST EVO PRO
High-performing automatic self-perforating punching machine with foot pedal for PVC banners and textiles for clear plastic eyelets (up to 50 eyelets/min). Equipped with support stand on reinforced wheels. For high-medium volumes users.
COD. 123456789
MAKE YOUR CUT FASTER
WITH LESS WASTE
- High performing automatic punching machine for clear plastic eyelets: it works up to 50 eyelets per minutes
- Electro-mechanical working mode: by pushing the foot pedal the machine punches a hole in the material and applies the eyelet and the washer in one single operation
- Pressure adjustment of eyelets closing: even on thin fabrics material will not roll
- Automatic loading of eyelets and washers for hands free working operations
- Absolute precise application thanks to the laser pointer
- Adjustment of cutting pressure and eyelets closing
- Positioning washer sensor: the machine does not work if the washer is not in place
- Powerful engine (1 HP) to cut through heavy materials
- Solid and safe construction to satisfy high performances over time
SUITABLE
MATERIALS
- PVC banner
- Mesh
- Fabric
- Non-woven fabric
- Truck tarpaulins
GHOST EVO PRO
Automatic self-perforating punching machine
-
Working area protected
Working area protected by transparent guard
-
Large hoppers
Large hoppers for eyelets and washers
-
Raceway for washers
Raceway for washers
-
Positioning guides
Positioning guides to set a regular distance of the material from the edge and between the eyelets
-
Laser pointer
Laser pointer for an accurate setting
-
Stainless steel sliding surface
Stainless steel sliding surface
-
Support stand easy to be moved around
Support stand on reinforced wheels with brake, easy to be moved around
-
Command with foot pedal
Command with foot pedal (hands free operation)
-
Compressor air
Compressor air filter (6 bar) for eyelets feeding (accessory not included)
GHOST EVO PRO Features
| GHOST EVO PRO | |
|---|---|
| Clear plastic eyelet & washer | Ø 12 mm (0,5 in.) |
| Max. speed | 50 occhielli/min |
| Support stand height | 960 mm (38 in.) |
| Max. thickness of substrate | max. 10 mm (0,4 in) |
| Working height | 1120 mm (44 in.) |
| Power Supply | 230 V - 50 Hz - 750 W |
| Dimensions (W x L x H) | 620 x 620 x 1790 mm (24 x 24 x 7 in.) |
| Weight | 165 kg (363 lbs.) |
