MIURA

COD. 123456789

High performing cutting machine with rotating blades for X and Y trimming of flexible materials from roll to sheets. It combines horizontal and vertical cutting for the fastest finish for your printed and unprinted rolls.

Miura cuts one roll of 50 meters (164 ft) in less than 5 minutes.

It is easy to use thanks to the intuitive set up of cutting parameters through the touch screen display.

This xy cutter can be connected to the internet network for an efficient remote assistance, saving time and money.

PERFECT CUT,
MAXIMUM SPEED

  • Combined horizontal and vertical cutting for the fastest finish for your printed and unprinted rolls
  • High performing trimmer: cut one roll of 50 meters (164 ft.) in less than 5 minutes
  • Precise cutting: trimmed images perfectly square every time
  • The lengthwise rotary crush cutters are safe for the operator, last for 100's of thousands of cuts with low costs of maintenance. No need of special cleaning after cutting adhesive media as they create a “dry,” non-sticky edge

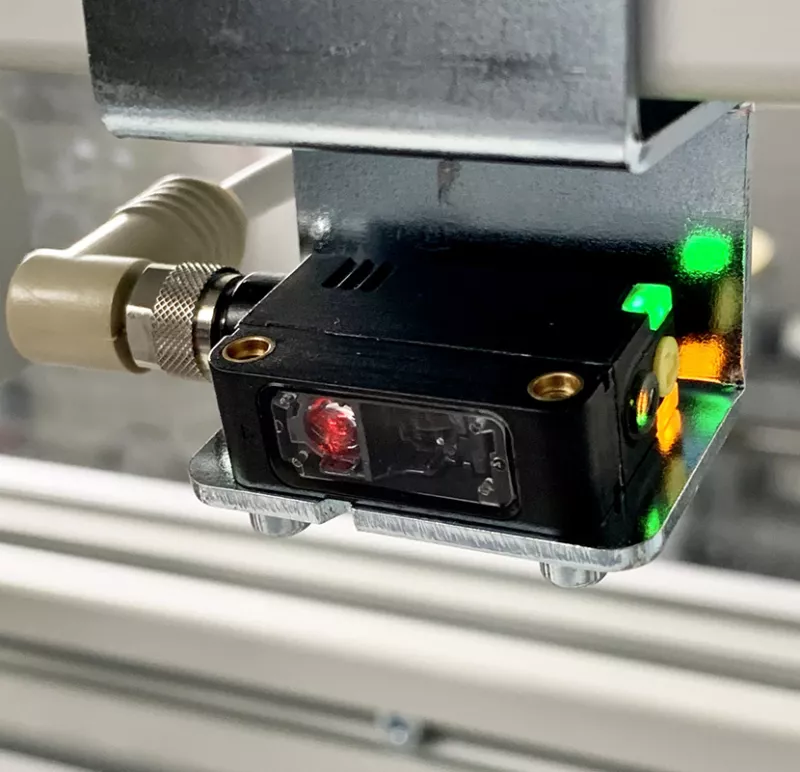

  • 3 operation modes: crop mark (useful to trim multiple printing sizes from the same roll), automatic and manual
  • Intuitive set up parameters thanks to the user-friendly software (LCD touch screen display). The MUTING function avoids misreading of hidden marks on the printed media
  • Intuitive set up parameters thanks to the user-friendly LCD touch screen control panel
  • Long term reliability and safety combined with low maintenance costs
  • Ready to use, no need of air compressor
  • Smart Remote Service: Miura can be connected to the internet network for remote assistance, for fast and efficient diagnostics

MATERIALS

  • Paper - Also laminated or encapsulated
  • Wallpaper
  • Vinyl & self adhesive vinyl
  • Backlit & frontlit display
  • Reflective material
  • PVC banner (up to 900 gr/m2 - 27 oz./ya2)
  • Magnetic rubber
  • Polycarbonate (film)
  • Canvas & polyester (with liner)
  • Many more..

Miura

High performing cutting machine with rotating blades for X and Y trimming of flexible materials from roll to sheets

Miura Technical Specs

SELECT T2.Id as Id, T2.Ordina, T3.Testo AS Label, T1.Testo AS Valore FROM TBLAttributiContent T0 INNER JOIN TBLContent TC ON TC.Id = T0.IdContent INNER JOIN TBLTesti T1 ON T1.idArea = 66 AND T1.IdTipoTesto = 67 AND T1.IdCampo = T0.Id AND T1.IdLingua = 015 INNER JOIN TBLAttributi T2 ON T2.Id = T0.IdAttributo INNER JOIN TBLTesti T3 ON T3.idArea = 66 AND T3.IdTipoTesto = 66 AND T3.IdCampo = T2.Id AND T3.IdLingua = 015 WHERE T2.Deleted <> 1 AND T0.IdContent IN (608,21625,612) AND T2.ShowOnWebsite = 1 AND ISNULL(RTRIM(T1.Testo),'') <> '' ORDER BY T2.Ordina, T2.Id, TC.ordina, TC.data desc, TC.Id
MIURA 160 MIURA 210 MIURA 265
Working width 1650 mm (65 in.) 2150 mm (84 in) 2650 mm (105 in.)
Maximum cutting thickness 1,2 mm (0,04 in.) 1,2 mm (0,04 in.) 1,2 mm (0,04 in.)
Feeding speed 1 - 30 m/min. (3 - 98 ft./min.) 1 - 30 m/min. (3 - 98 ft./min.) 1 - 30 m/min. (3 - 98 ft./min.)
Usable cutting units Max. 8 Max. 8 Max. 8
Cross cutting speed 5 - 120 m/min. (16 - 393 ft./min.) 5 - 120 m/min. (16 - 393 ft./min.) 5 - 120 m/min. (16 - 393 ft./min.)
Max. roll diameter 300 mm (12 in.) 300 mm (12 in.) 300 mm (12 in.)
Max. roll weight 60 kg (132 lb.) 60 kg (132 lbs) 60 kg (132 lbs)
Power Supply 230 V - 50 Hz - 650 W 230 V - 50 Hz - 650 W 230 V - 50 Hz - 650 W
Dimensions (W x L x H) 2460 x 970 x 1330 mm (96 x 39 x 52 in) 2960 x 970 x 1330 mm (116 x 39 x 52 in) 3460 x 970 x 1330 mm (136 x 39 x 52 in)
Packing dimensions (W x L x H) 2650 x 1150 x 1650 mm (104 x 45 x 65 in) 3250 x 1250 x 1700 mm (128 x 49 x 67 in) 3750 x 1250 x 1700 mm (147 x 49x 67 in)
Weight 330 kg (727 lbs) 370 kg (815 lbs) 430 kg (947 lbs)
Packing weight 415 kg (914 lbs) 540 kg (1190 lbs) 628 kg (1384 lbs)
