MIURA PLUS HD
COD. 123456789
High performing cutting machine for horizontal and vertical trimming of flexible materials with automatic vertical media alignment correction. Suitable for large productions.
ABSOLUTE SPEED AND
HIGH PRODUCTION
- Automatic XY cutter with renovated and robust frame specific designed for heavy rolls, max. 400 mm (16 in) diameter, 200 kg (441 lbs) weight
- Perfect match with industrial large format printers working with semi-jumbo rolls
- High performing trimmer: cut one roll of 1000 linear meters (3.280 ft) in 1 hour (productivity up to 1600 m2)
- Extremely high precision is ensured thanks to the automatic EDGE CONTROL that reads either the line longitudinally printed or the material’s edge along the entire length of the roll
- 3 operation modes: crop mark, custom (sheeting) and manual. Miura can trim different lenghts from the same printed roll
- Intuitive set up parameters thanks to the user-friendly software (LCD touch screen display). New MUTING function to avoid misreading of hidden marks on the printed media
SUITABLE
MATERIALS
- Paper - Also laminated or encapsulated
- Wallpaper
- Vinyl & self adhesive vinyl
- Backlit & frontlit display
- Reflective material
- PVC banner (up to 900 gr/m2 - 27 oz./ya2)
- Magnetic rubber
- Polycarbonate (film)
- Canvas & polyester (with liner)
- Many more..
Miura Plus HD
High performing cutting machine for X and Y trimming of flexible materials with automatic vertical cutting correction for heavy rolls
-

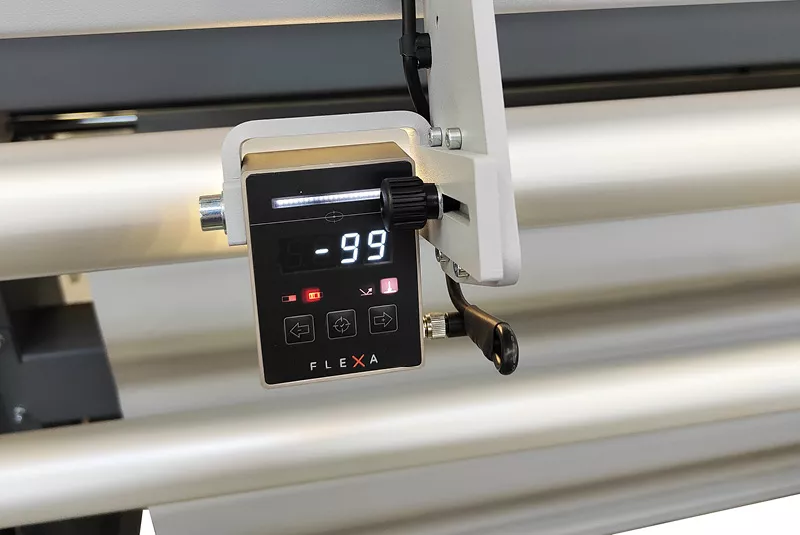

Control panel
Automatic vertical alignment control panel
-

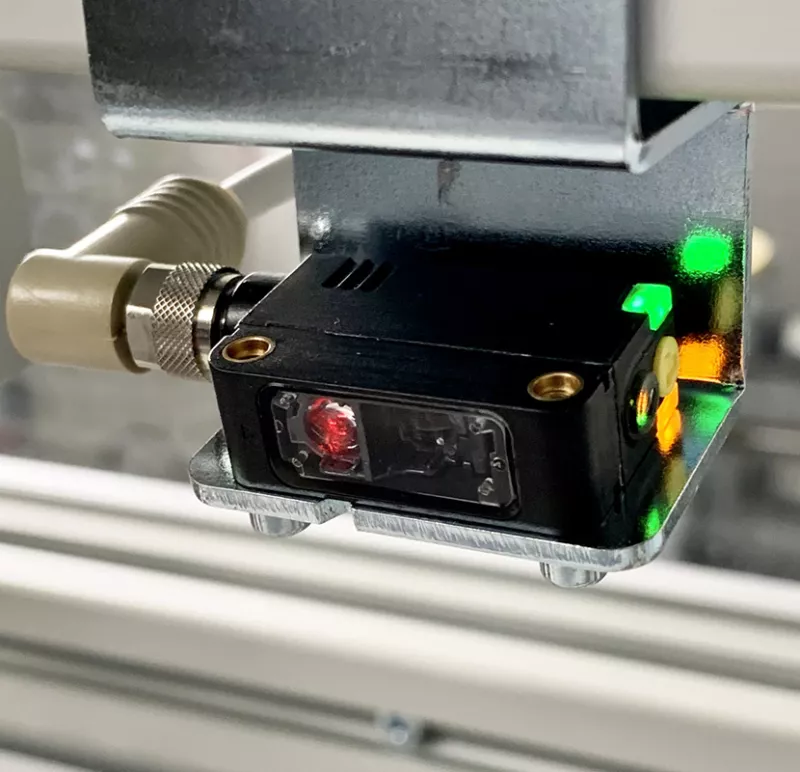

Optical sensor for vertical alignment
Optical sensor for vertical alignment
-
Advanced cutting mark reader
Advanced cutting mark reader
-
Positioning of the cutting blades
Fine positioning of the cutting blades (Optional)
-
Pressure adjustment
Fine pressure adjustment (according to the types of material)
-

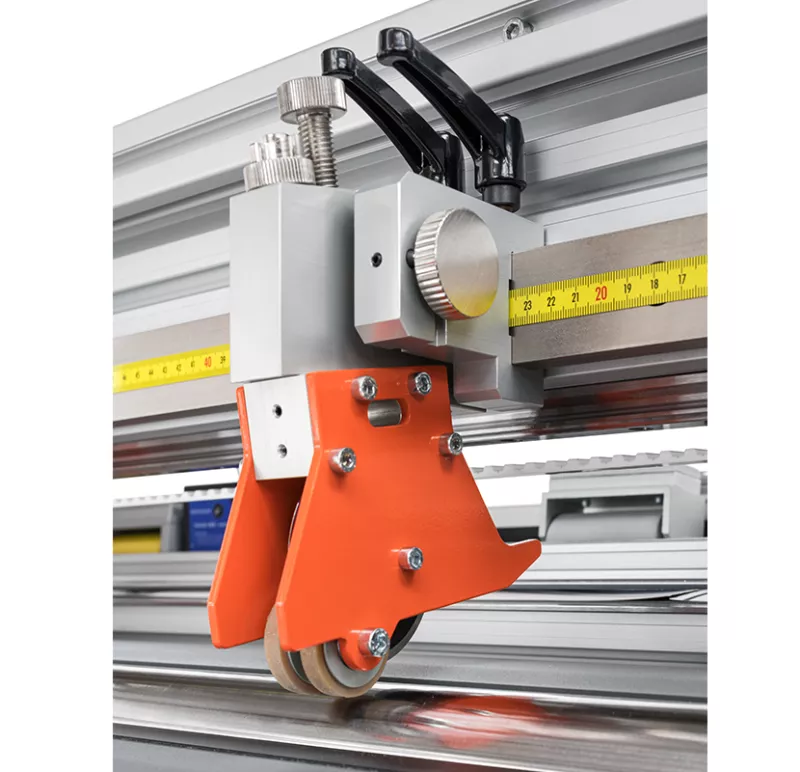

SIngle lenghtwise rotary crush cutter
Single lenghtwise rotary crush cutter (twin cutters Optional)
-

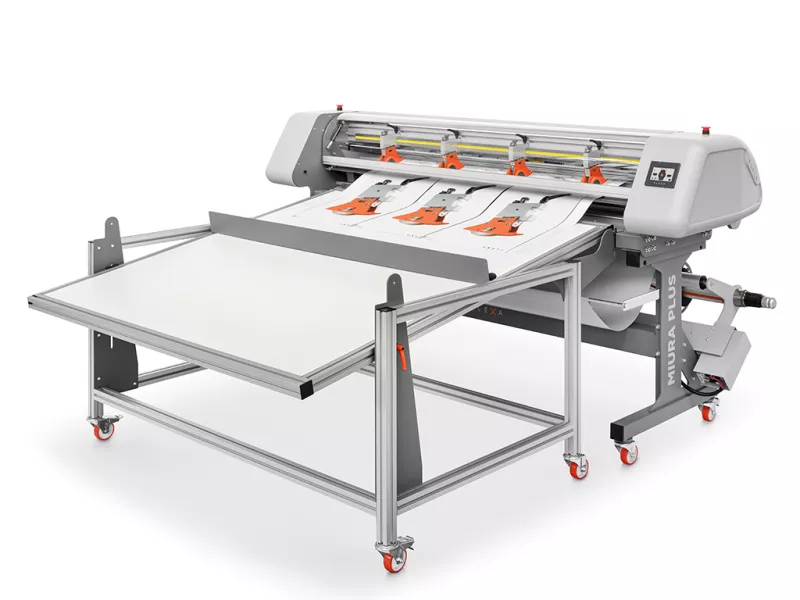

Adjustable collecting table
Adjustable collecting table (Optional)
-

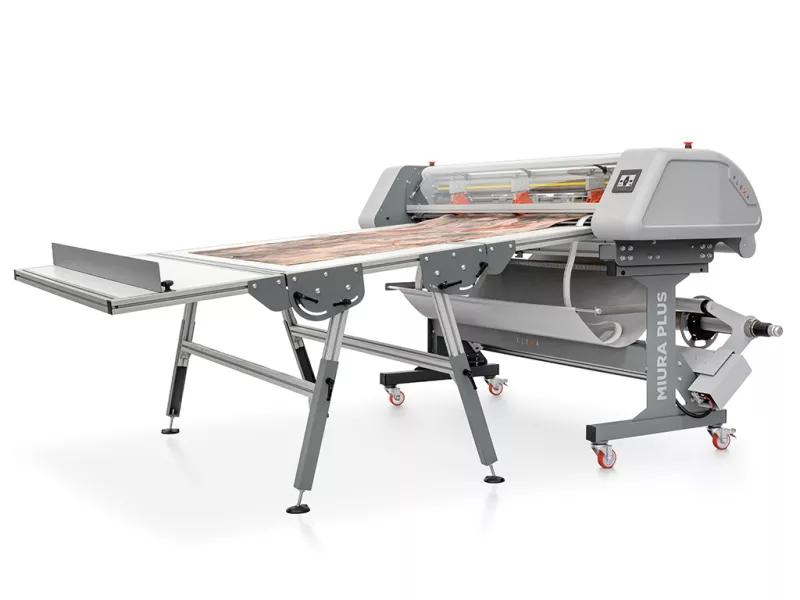

NEW Motorized Stacker in line with the cutter
NEW Motorized Stacker in line with the cutter: height and inclination electronically adjustable; extensible length up to 3,1 meters (optional)
-
NEW display design
Intuitive set up parameters thanks to the new designed user-friendly LCD touch screen
-
NEW MUTING function
It avoids possible misreading of hidden marks
-
Pneumatic brake
Pneumatic brake for adjusting the media tension
-
Air expansion shaft
Ease of loading heavy rolls thanks to the air expansion shaft
-
NEW Slimline lengthwise cutter
Slimline lengthwise rotary crush cutter, single or twin (optional)
Miura Plus HD Technical Specs
| MIURA PLUS HD | |
|---|---|
| Working width | 1650 mm (65 in.) |
| Maximum cutting thickness | 1,2 mm (0,04 in.) |
| Max. roll diameter | 450 mm (18 in.) |
| Feeding speed | 1 - 30 m/min. (3 - 98 ft./min.) |
| Max. roll weight | 250 kg (551 lbs) |
| Power Supply | 230 V - 50/60 Hz - 650 W |
| Cross cutting speed | 5 - 120 m/min. (16 - 393 ft./min.) |
| Usable cutting units | Max. 8 |
| Dimensions (W x L x H) | 2456 x 1337 x 1438 mm (97 x 52 x 56 in) |
| Weight | 490 kg (1080 lbs) |
| Packing dimensions (W x L x H) | 2700 x 1800 x 1700 mm (106 x 71 x 67 in) |
| Packing weight | 640 kg (1411 lbs) |
Supported RIPs
